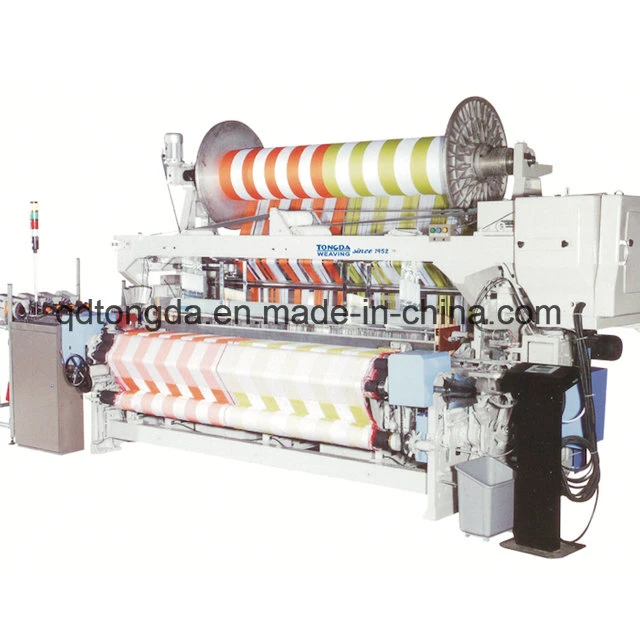

TONGDA TD737 Textile Machine Towel Rapier Loom Weaving Machinery
Main Features:
It is used for weaving spiral satin or small jacquard towel fabrics such as facecloth, tea cloth, square cloth and bath towel, and is specially idea for weaving heavy and thick terry towel fabrics.
The development of this model has greatly reduced machinery cost thereby lowered the weaving cost. It is suitable for weaving cotton and blend fabrics.
Advantages:
1. The Machine has very good performance such as
2. Little noise ,easy operation,convenient service,beautiful exterior etc.
3. The body of machine uses the thicker wallboard to improve the stability
Of operation and the quality mostly.
4. The machine is suitable for manufacturing natural fiber,artificial fiber,
decorative yarn into the light,medium or heavy fabric.
Main Specification:
| Model | 180 | 200 | 230 | 250 | 330 | 360 | 380 | |
| Working width | 1750 | 1950 | 2250 | 2450 | 3250 | 3550 | 3750 | |
| Rotation speed | 210-250 | 200-230 | 190-200 | 170-190 | 160-180 | 150-180 | 140-180 | |
| Weft selection | 4 color, 6 color , 8 color | |||||||
| Weft density | 14-40 strips/cm | |||||||
| Yarn | 8-52 | |||||||
| Warp beam dia.(mm) | 600,800 | |||||||
| Max rollup cloth diameter(mm) | 300/400 | |||||||
| Max insertion rate | 300/420(m/min) | |||||||
| Motor Power (KW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| 960RPM | 960RPM | 960RPM | 720RPM | 720RPM | ||||
| Dimension(mm) | L4100*W1827*H2120 | L5600*W1827*H2120 | ||||||
The Drawing of the machine:
Productions:
Information of our factory:
As for the details you can reference qdtongda.en.made-in-china.com
Certificates and Exhibition --welcome to make inquiry and look forward to meeting you at Fairs coming:
FAQ:
About Payment Terms:
We accept the following payment methods: T/T & L/C.
About After-Sales Service:
Our goal is Good,better,best,never let it rest. & Our service purpose is try our best to make customers satisfied.
Professional team will solve any problems you met during the whole purchasing progres
